How Many Volts Is a Car Battery?

A car battery is a 12-volt battery. But a fully charged one actually reads 12.6 volts. That’s the number you want to see. Anything lower means your battery needs some attention.

What Is the Normal Car Battery Voltage?

The normal car battery voltage is 12.6 volts with the engine off. This is called the resting voltage. It tells you the battery is fully charged and in good shape.

Your battery has six cells inside. Each cell produces 2.1 volts. Six cells times 2.1 volts gives you 12.6 volts total. That is exactly why a healthy battery hits that number.

One thing to keep in mind. Always test your battery after the car has been sitting for at least an hour. Testing right after a drive gives you a falsely high reading. Let it rest first and you get the real number.

Car Battery Voltage When the Car Is Running

Once you start your car, the voltage goes up. This is totally normal. Your battery should read between 13.5V and 14.5V while the engine is running.

Here is why it goes higher. When the engine runs, the alternator kicks in. The alternator takes over and powers your car’s electrical system. It also recharges the battery at the same time. That extra power pushes the voltage above 12.6V.

Now here is something important. If your voltage stays at 12V while the engine is running, that is a red flag. It means the alternator is not doing its job. Your battery is running on its own stored power. And it will not last long.

If you ever see the voltage go above 14.8V, that is also a problem. The battery is getting overcharged. Get it checked right away.

Car Battery Voltage Chart – What Every Reading Means

Pull out your multimeter and check the number. Here is exactly what that reading tells you.

Voltage Reading	Engine State	Battery Status	What To Do
12.6V or above	Off	✅ Fully charged	You are good to go
12.4V to 12.5V	Off	🟡 75% charged	Keep an eye on it
12.2V to 12.3V	Off	⚠️ 50% charged	Recharge soon
12.0V to 12.1V	Off	🔴 25% charged	Recharge right away
Below 12.0V	Off	❌ Dead or near dead	Jump start or replace
13.5V to 14.5V	Running	✅ Normal	Alternator is working fine
Below 13.5V	Running	⚠️ Undercharging	Get alternator checked
Above 14.8V	Running	🔴 Overcharging	Get it checked right away

One thing to keep in mind. Take your reading after the car has been sitting for at least an hour. A fresh reading right after driving will show higher numbers and give you a false result.

What Voltage Is Too Low for a Car Battery?

Below 12.4V ➜ Time to Recharge

If your battery reads below 12.4V, it is running at 75% charge or less. It might still start your car today. But do not ignore it. Recharge it as soon as you can.

Below 12.0V ➜ Real Trouble

This is a red flag. Your battery is down to about 25% charge. Starting the engine becomes unreliable at this point. Recharge it right away before it gets worse.

Below 11.9V ➜ Basically Dead

At this point your battery is completely discharged. It has almost no power left. It will not start your car. You need a jump start or a replacement.

How to Check Your Car Battery Voltage

You just need a multimeter. It is a small inexpensive tool and the test takes less than two minutes.

Step 1: Let the car sit for at least one hour.

Do not test right after driving. The battery holds a surface charge after a drive and gives you a falsely high reading. One hour of rest gives you the real number.

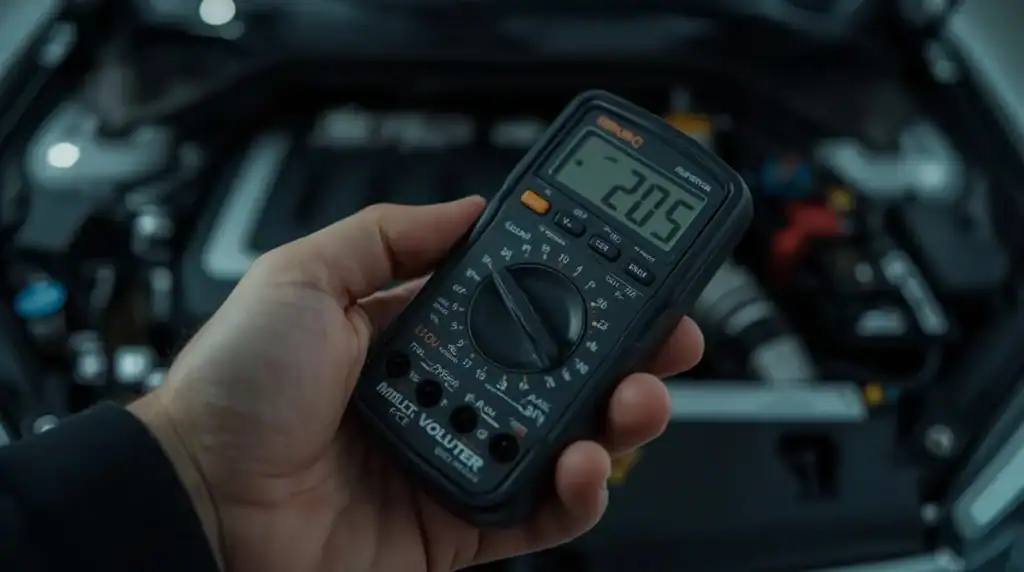

Step 2: Set your multimeter to DC voltage.

Turn the dial to DC volts. Set the range to 20V. This covers the full range of a car battery reading.

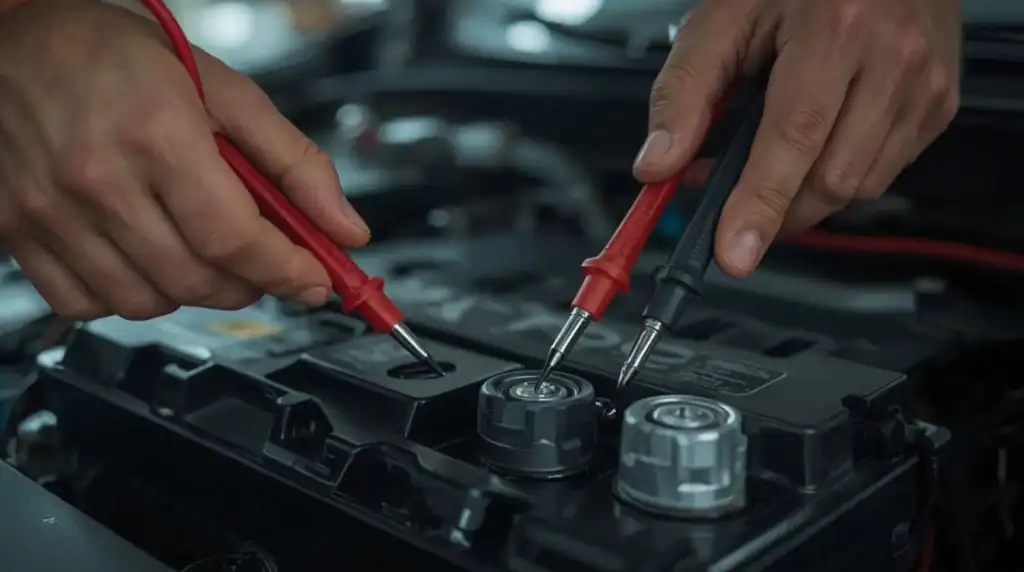

Step 3: Connect the probes.

Touch the red probe to the positive terminal. Touch the black probe to the negative terminal. Both terminals are marked with a plus and minus sign on the battery.

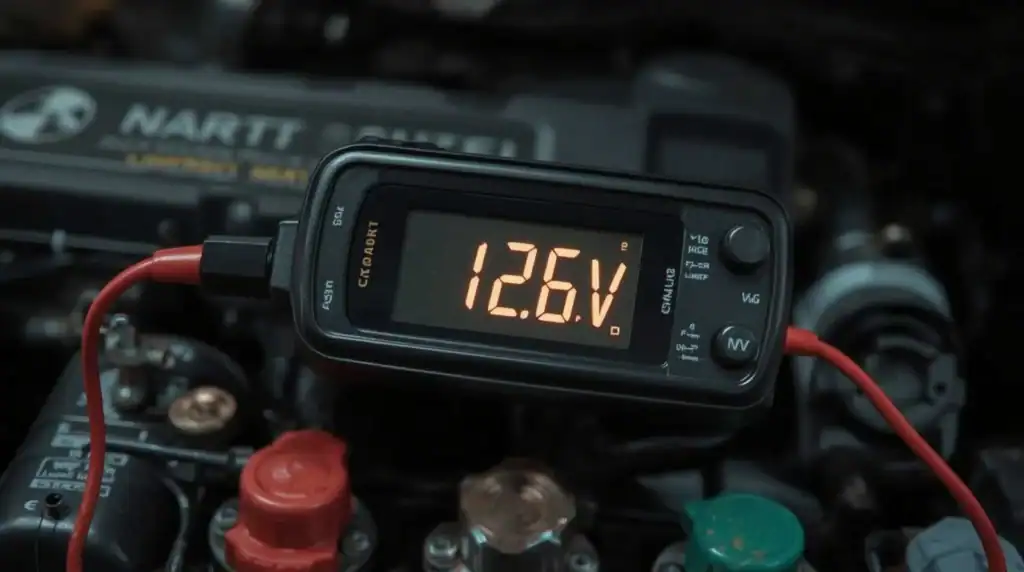

Step 4: Read the number.

A healthy battery shows 12.6V or above. Anything below 12.4V needs attention. Use the voltage chart above to know exactly where you stand.

Car Battery Voltage Frequently Asked Questions

Is a car battery exactly 12 volts?

Not exactly. The “12 volt” label is just a nominal rating, like a nickname. A fully healthy battery actually reads 12.6V at rest. The 12V number is rounded down for simplicity.

How many volts does a car battery need to start?

Most cars need at least 12.0V to start reliably. Below that, cranking gets slow and unreliable. If your battery drops to 11.8V or lower, it most likely will not start at all.

At what voltage is a car battery considered bad?

A battery that reads below 12.4V consistently after a full recharge is a warning sign. If it still reads under 12.4V after charging, the battery can no longer hold a proper charge. That is your sign to replace it.
